Why are light spots uneven & messy in retail stores? How to select lighting fixtures with qualified optics?

1. Optical system is the core of commercial accent lighting

1. TIR (Total Internal Reflection) Lens Spotlights

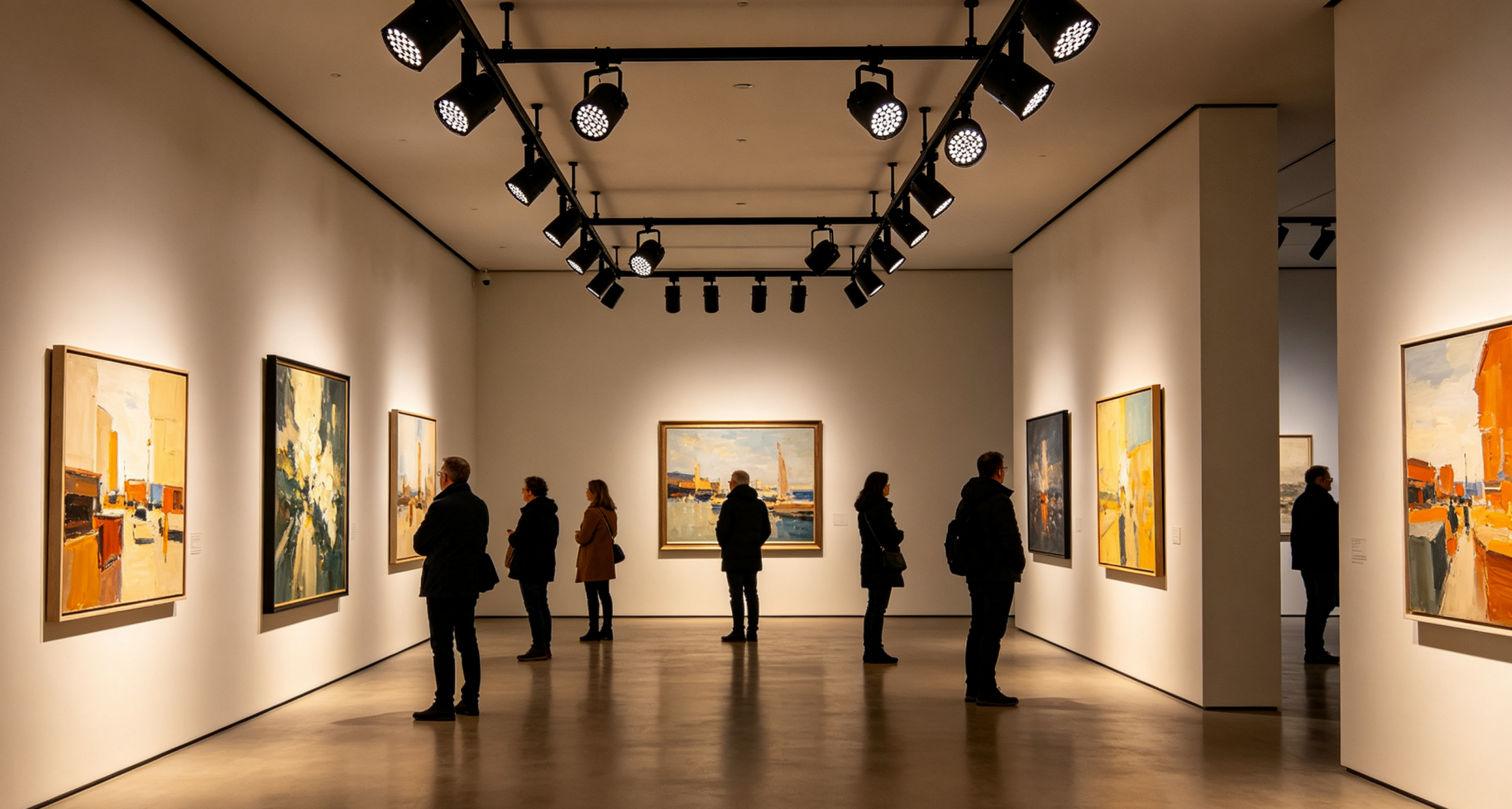

   Optical efficiency reaches 85%~92%, offering crisp beam edges and stable uniformity with multiple beam angles. Ideal for galleries, luxury boutiques and high-end retail projects requiring premium product presentation.

2. Aluminum Reflector Spotlights

   Deliver softer light transition with moderate cost and wide-angle options. Suitable for restaurants and lifestyle retail ambient accent lighting. Limitation: weak beam control and stray light for narrow-angle output.

3. Hybrid Optics (Lens + Reflector)

   Combine the uniformity of TIR and softness of reflectors with superior anti-glare performance. Perfect for automobile showrooms, luxury retail and texture display of fabrics & stone materials.

2. Match beam angles according to display scenarios

1. Narrow Beam (10°–15°)

   Best for jewelry, watches, small exhibits and window focal displays, matched with deep anti-glare housing to maintain concentrated light over distance.

2. Medium Beam (24°–36°)

   Suitable for shelf displays, fashion merchandise, general retail displays; the most versatile option for commercial lighting.

3. Wide Beam (40°–60°)

   Designed for feature walls, large shop windows and ambient fill light for minimalist retail spaces.

3. Ceiling height determines beam selection

1. Low Ceiling (<3m)

   Choose medium & wide beam anti-glare spotlights. Avoid narrow beams which create harsh uncomfortable light at close range.

2. Standard Ceiling (3–4m)

   The most common retail height. 15°~36° beams with TIR optics deliver precise light control.

3. High Ceiling (4–6m)

   Adopt narrow beam, high-output precision optics, ensuring light stays focused without excessive divergence over long projection distance.

4. Long-term drawbacks of low-quality optics

5. Checklist for high-quality track spotlight optics
